Cadence What’s New in OrCad Capture /CIS 16.5

一、New Features and Enhancements

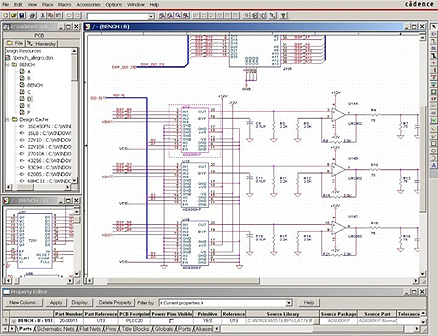

•   Usability Enhancements

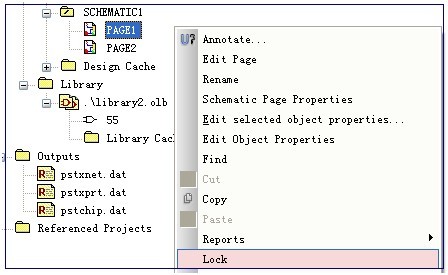

•  Graphical Operation (GOp) Locking

允许用户锁定原理图中的objects，锁定后的objects不能再进行移动。可以对page内的objects、对page、对整个design进行锁定。

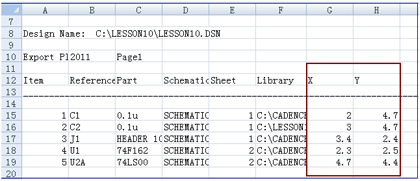

●  Placement Report

可以输出元件坐标报告.csv文件，报告中列出元件的以下信息：

○ Reference designator;

○ Part name

○ Schematic name

○ Sheet number

○ File system location of the part library

○  Xco-ordinate location

○  Yco-ordinate location

●  Find Result Reports

执行“Find”命令后，可以对查找结果生成CSV或HTML格式的报告。

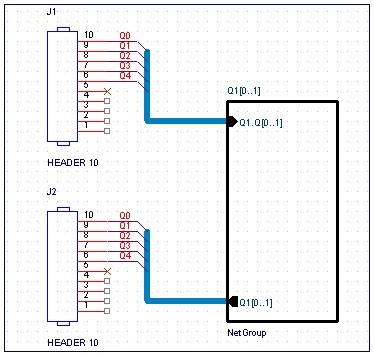

■    Introduction of Net Group

OrCAD Capture16.5 提出了Net Group的概念， NetGroup是一组网络的集合。NetGroup可以只包含nets（类似于bus），还可以包含buses或其它的netgroups。

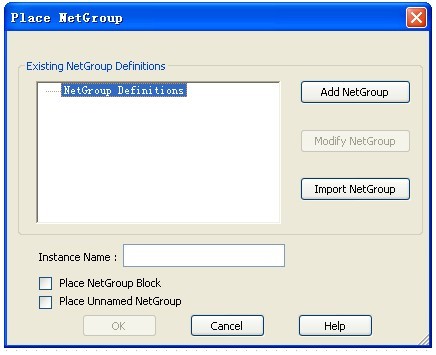

“Place-- NetGroup”or

■   CIS.INI Settings

一般情况下，当CIS数据库设置好后，不会再去修改INI配置，但有时也会需要重新配置INI文件，OrCAD 16.5对CIS的INI环境配置文件作了备份，当需要重新初始化配置时，就可以启用备份文件。

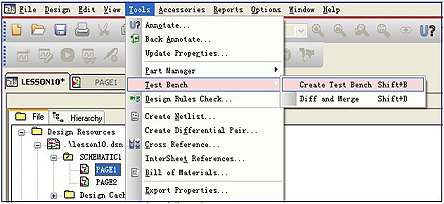

■   Partial Design Simulation

16.5版本支持Partial Design Simulation，即用户可以指定设计的部分电路，并进行局部电路仿真。可以用不同的仿真配置文件（simulationprofiles）来仿真设计中的不同电路，也可以只生成设计的指定电路的局部网表，还可以快速地比较和合并设计的各个部分。

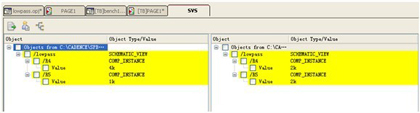

Compare design：

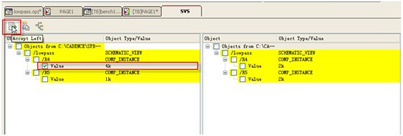

Update design：

注：此功能只支持OrCAD Capture CIS.

二、Fixed CCRs

CCR ID    Description

9624        Bus elements should be allowed to have two name bundled bus

18949      intersheet references

44619       intersheet reference Y direction option

218072     write session log as a file in working dir to debug crash

278638     EMI:Intersheet refs fail with error8001 due to dup titleblk

295079     Create a bundled net

521754     Assign nets to Bus

569920     Enhancement : generic bus names

676210     Enhancement for correlate lower level pages with H blocks in PDF

695197     MMBT2222A/SOT has incorrect pinout

709341      function“Display Property”puts property in wrong place

715550      Enhancement：get current location and perform the operation using macro

721008      Need to create multiple libraries like RESISTOR.OLB automatically

721242      Update cache should reset the visible property locations

722344      Ability to have more than one array of nets travel on a bus

732850      Coping to Type column in Split Part view is not working

734334       Incorrect DOC description for DRC warning DRC0042

734365       Whatkind of problem user may experience at board level if user violates

                     warningDRC0042

737660       Whylock files are generated whenever a power symbol is placed from

                      the library“sources.lob”

740341       Draw Tool Bar re-appears automatically even if it is unchecked

                     underTools-Customize

749163       Thespecial character{ is corrupting BOM report

749211       Capture crash while doing a controlled annotation on the design

749215        Incorrect pins descriptions on OP467/SO in OPAMB.LOB

749663        Enhancementrequest on Push Occ properties to instance window

750436        Error [ALG0080] Inconsistent pin-number values

CCR ID    Description

753933     WhySchematic Page Count and Schematic Page Number values

                   are 0 in property editorof title block

761666      TclSprit opens as text file when executed from Windows Command

                     line with Capturealready open

766459      Problems with DRC0037 warning

768671      OrCAD DSN File Page Lock Function

769737      Unable to move properties

769849      visible property cannot be moved

770068      Setup for unlocking part is missing in capture user guide

772322      Unable to disable Draw Toolbar

774862      Users cannot reposition the displayed name and value of a new

                    added inCapture CIS ISR007

785742      Enhancement to add common property to all the parts in library an once

788270       Capture crashes while doing Clean up cache

793284       Draw toolbar re-appears

795323      Tools-Create Netlist should not launch PCB Editor even on failure ofnetlist

798486       Time stamp in DRC report

803345       Enhance Doc to update that‘Update/Replace Cache’does

                     not alwayschange the PCB   Footprint/Package property

804601       Newadded property value on symbol is not moving

807938       ENH-Place Pin Array does not remember all previous settings

807973        Errorin Existing pin overlayed dialog

827547       UNDO/REDO Data on Save option is absent

828001       Goto Bookmark works only for selected page

833050       TCLcommand for PAGE RENAME does not invokes the rename dialog box

837715       Con not Place No Connect if not ontoolbar

739272       Incorrect CIS Query

744033       H-part parts are not shown by“part manager”

748982       Respective pin number from schematic does not get highlighted

                     on 3Dfootprint viewer

CCR ID         Description

753962        Value property is not being displayed while placing part from

                      CISExplorer in SPB 16.3

762886        Shortcut Key to“place database part”is Z

768716        OrCAD Part Location Report

797793        Value property is not being displayed while placing part from

                      CISExplorer in SPB 16.3

840687        Enable undo to work after AMSsimulation is run
